Yottamaster Y-Pioneer 5 Bay External Hard Drive Enclosure
- 【Reliable External Storage System for Individuals】
- 【Flexible RAID for Customized Work Need】
- 【80mm Silent Fan Inside】

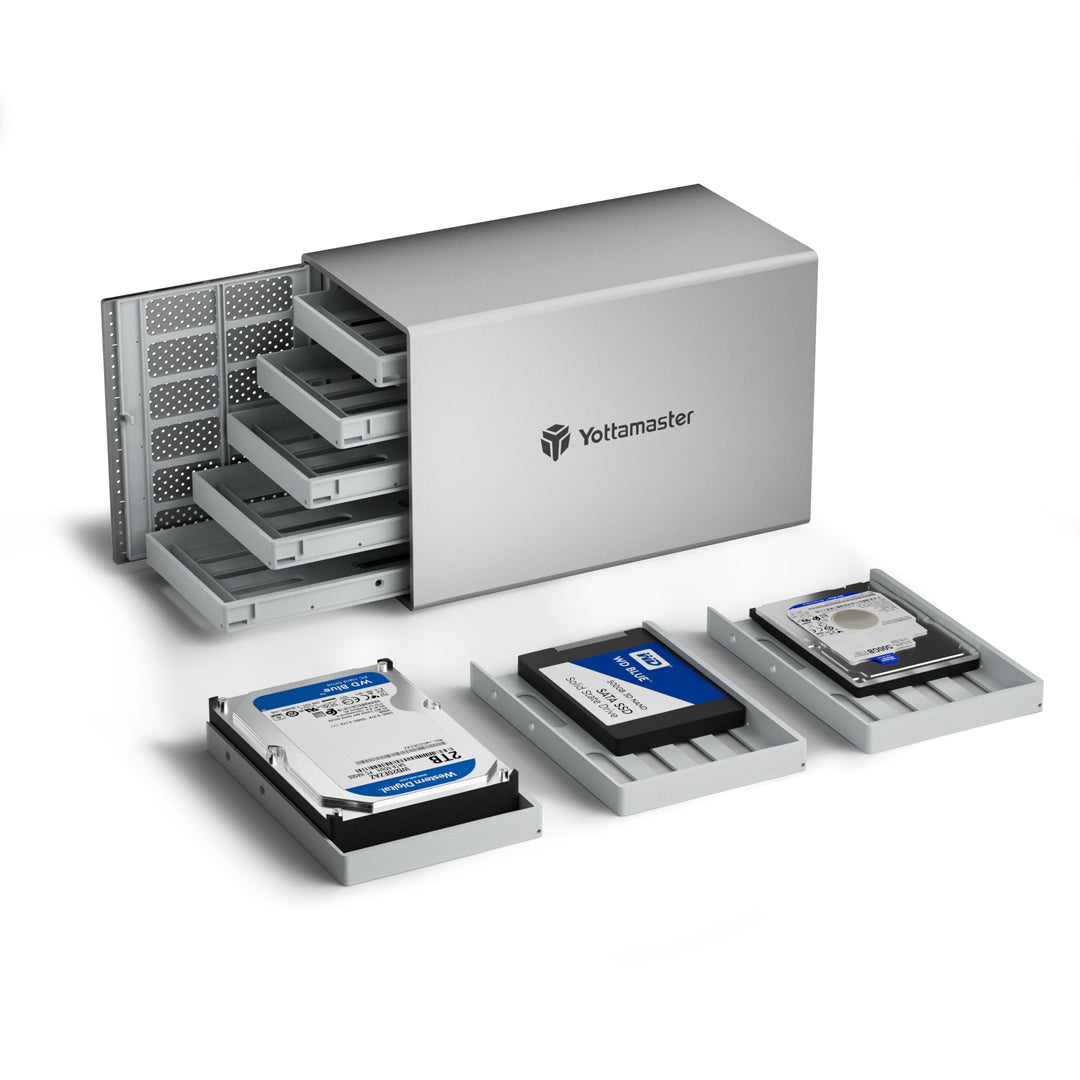

- 【For 2,5/3,5-inch Hard Drives】
- 【Up To 6Gbps Transfer Rate】
Five LED Indicator Lights
Blue light: Power on Blinking blue and red alternately: Reading data Red light: Hard drive error
Precautions for Power Supply Plug
Please refer to the picture attached to insert the plug as the indicated direction, or the enclosure won't work properly if the plug is inserted in a wrong direction. Make sure that the flat end of the power connector is facing up.

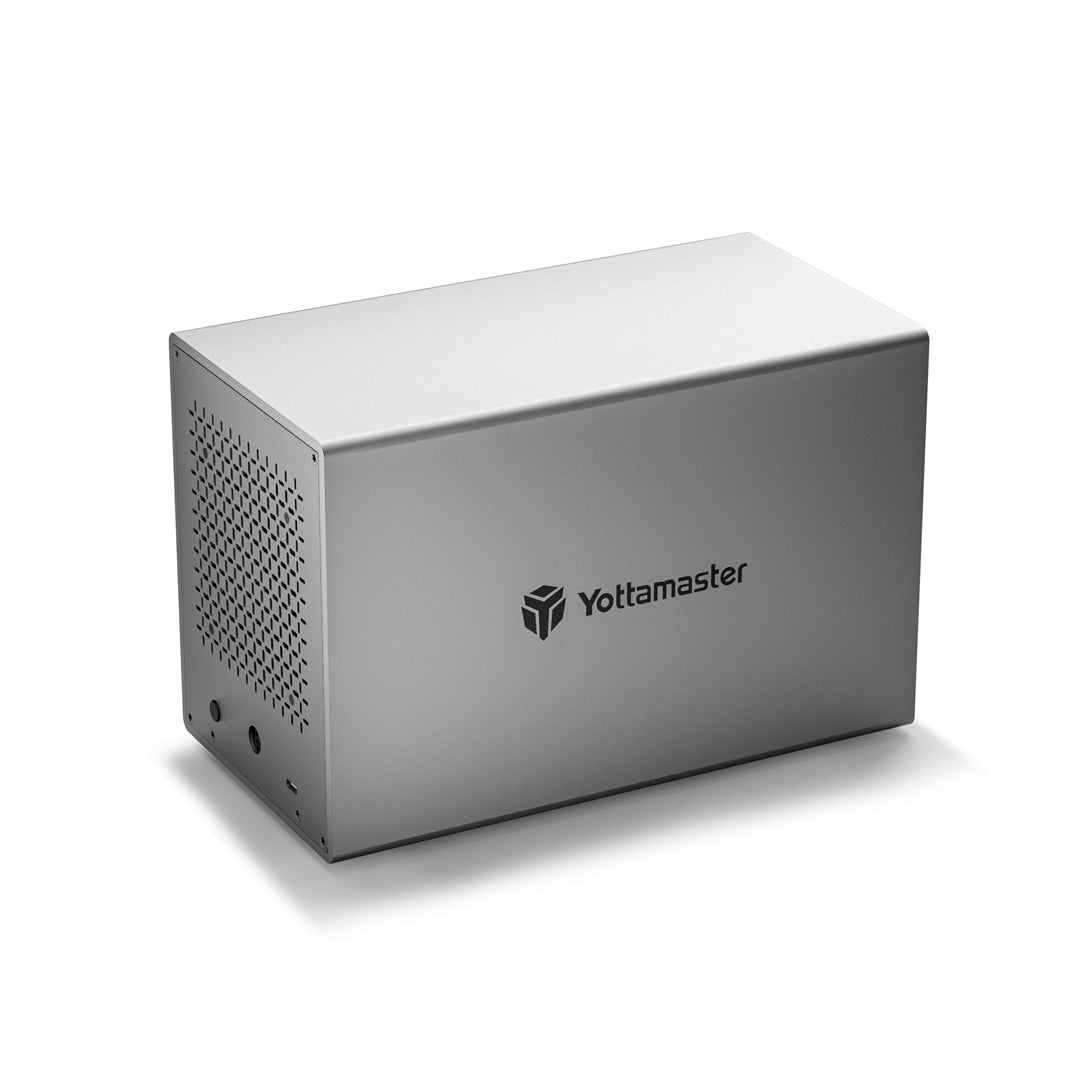

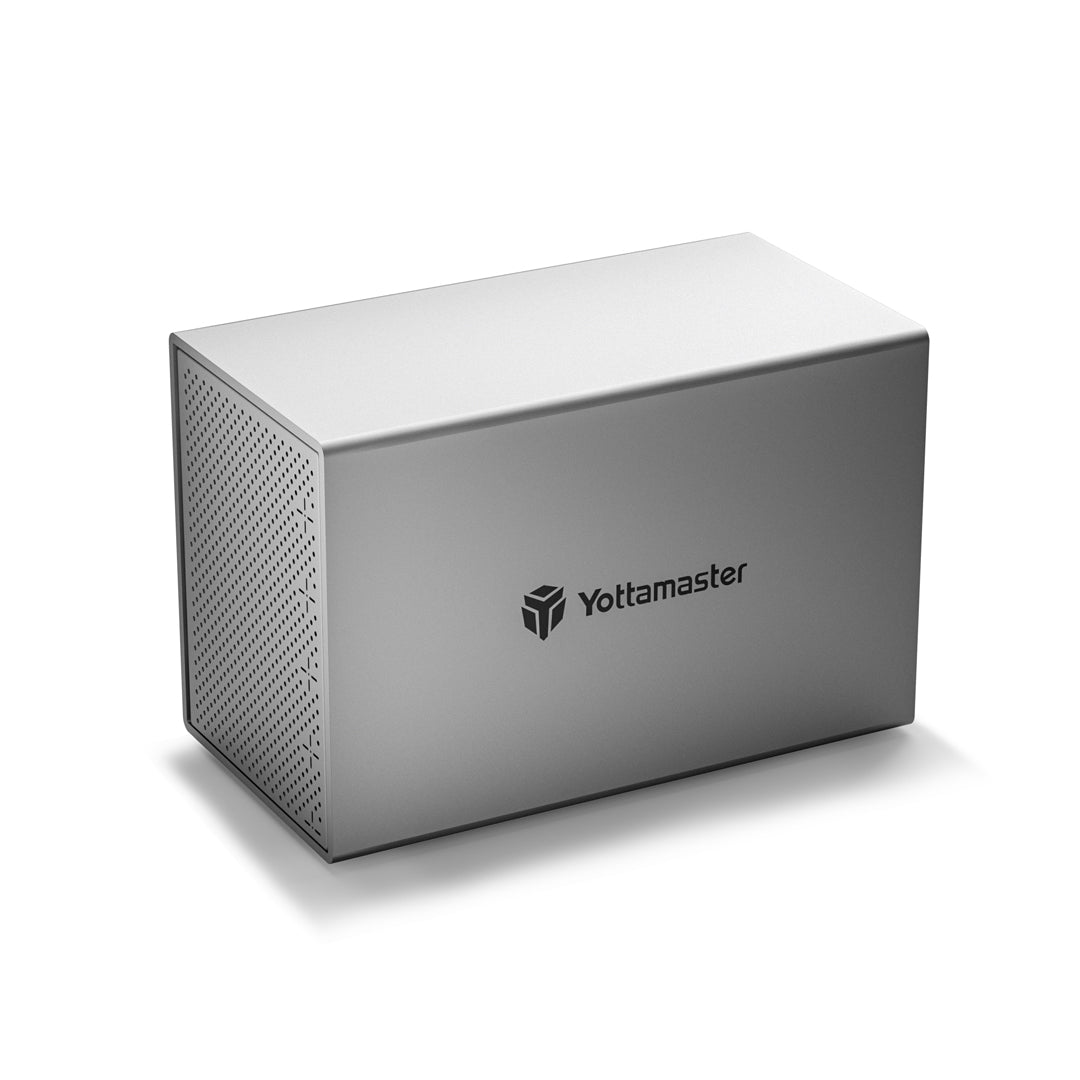

With aluminum alloy body and anodizing surface, a kind of excellent design

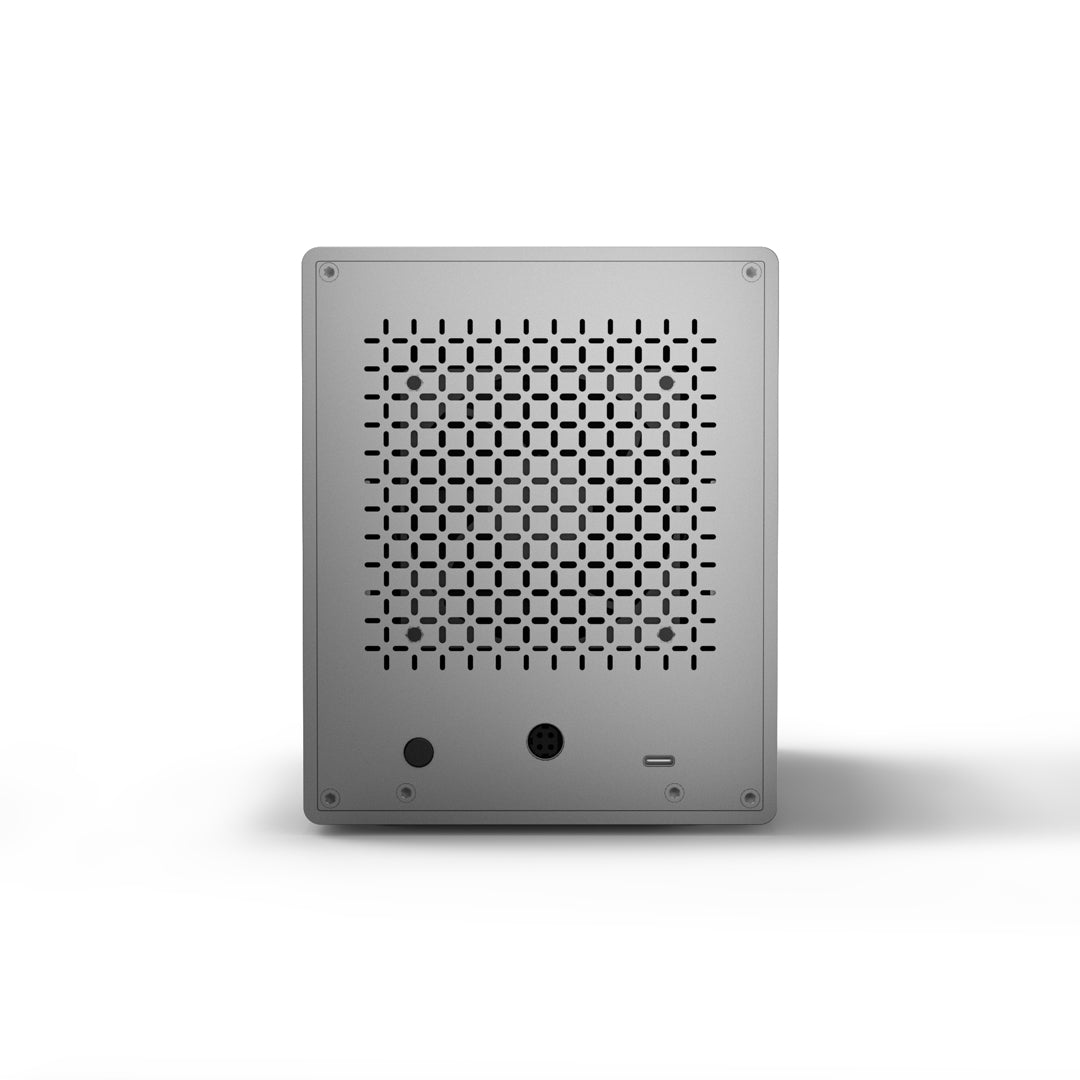

Cool all-aluminum bodyFront and rear with large area cooling holes.
80mm fan speed up convection and rapid cooling.USB3.0 to SATA III ProtocolWith USB-A to Type-B cable (1m/3.3ft)With a versatile USB-A port to connect your peripheral devices.
What We Offer for You?
2-Year FREE replacement & Life-time Tech Support.
Five LED Indicator Lights
Blue light: Power on Blinking blue and red alternately: Reading data Red light: Hard drive error
Precautions for Power Supply Plug
Please refer to the picture attached to insert the plug as the indicated direction, or the enclosure won't work properly if the plug is inserted in a wrong direction. Make sure that the flat end of the power connector is facing up.
With aluminum alloy body and anodizing surface, a kind of excellent design
Cool all-aluminum bodyFront and rear with large area cooling holes.
80mm fan speed up convection and rapid cooling.USB3.0 to SATA III ProtocolWith USB-A to Type-B cable (1m/3.3ft)With a versatile USB-A port to connect your peripheral devices.
What We Offer for You?
2-Year FREE replacement & Life-time Tech Support.
Video
RAID 5 Mode is the Most Cost-effective Choice For 5-bay Hard Drive Enclosures
If you are looking for something solid to house your growing need for external drives. And if you want one enclosure that could house them all instead of having multiple drives hanging off the back of your iMac. Hardware RAID 0 / 1 / 3 / 5 / 10 / JBOD/ CLONE array modes for controlling speed, capacity, or data redundancy, huge capacity for archiving, and enterprise-class drives dishing out intense performance so you can do what you do — better.
Frequently Asked Questions
How do I know if one of the hard drive is failed?
If one of the drives is damaged/failed, the corresponding indicator will turn red and the enclosure will make a warning sound(beep).
How to replace a hard drive?
1. Find the drive(bad one or the one you wanna replace). Eject the enclosure from PC then power off the enclosure. 2. Pull out the drive. Format the new drive on another device first. Then insert it to the original position and turn on the enclosure.
How to add a new hard drive into the enclosure?
1. Safely eject the enclosure from your computer and then turn off the enclosure. 2. If the drive you want to add is a brand new drive, please format it on another device. Then insert it into the enclosure. Do not change the drive order.
Can I connect the device to the computer through a hub?
We recommend that you connect the device directly to the computer, as the connection may be unstable through a hub.
What is the specification of the fan?
The diameter is 80mm, the voltage is 12V, and there is no current limit. 2 PIN.
Product specification
RAID USB3.0
No RAID USB3.0
RAID Type-C
Yottamaster-PS5RU3
Yottamaster-PS5U3
Yottamaster-PS5RC3
Aluminum Alloy
Aluminum Alloy
Aluminum Alloy
USB Type-B
USB Type-B
Type-C
5 Gbps
5Gbps
5Gbps
252*136*168.5mm
252*136*168.5mm
252*136*168.5mm
78W External Power Supply
78W External Power Supply
78W External Power Supply
80TB (16T on a single disk)
80TB (16T on a single disk)
80TB (16T on a single disk)
Windows/Mac/Linux
Windows/Mac/Linux
Windows/Mac/Linux
