Yottamaster 10 in 1 USB-C Docing Stastion with NVMe Enclosure

Sale price$119.99 USD Regular price$159.99 USD
Color: Grey
Description
DS03C

USB C Docking Station with M.2 NVMe Enclosure

Are you tired of dealing with a cluttered desktop, constantly switching devices, and struggling with limited interfaces? Look no further than the Yottamaster 10-in-1 Docking Station to solve all your connectivity woes.

This versatile hub is designed to streamline your work setup. With a single device, you can expand your device's capabilities and enjoy seamless data transfers. Say goodbye to storage constraints and sluggish data exchange – this hub has got it all covered.

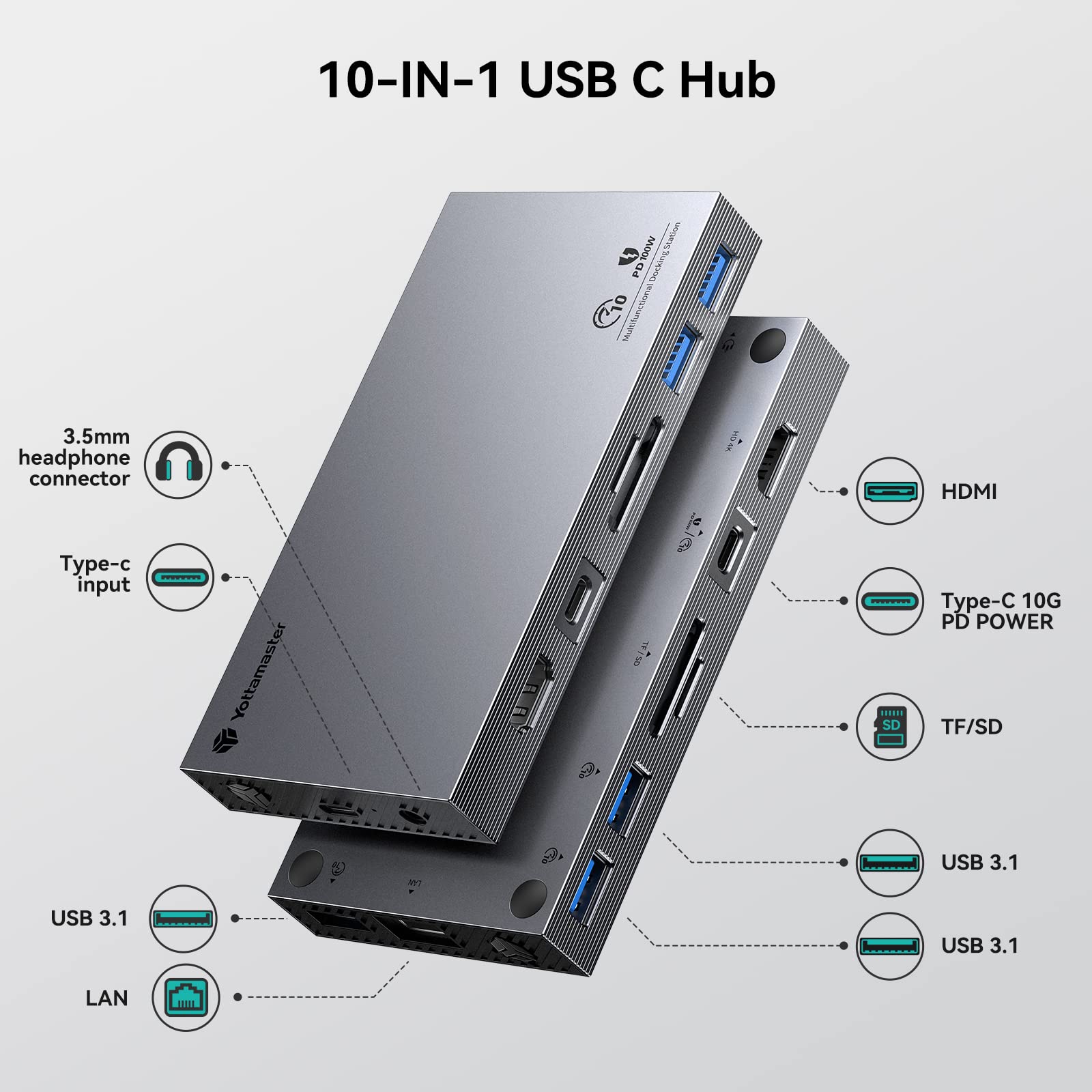

Here are the key specifications:

- 1 NVMe slot (supporting up to 4TB of storage)

- 3 USB-A 3.2 Gen2 ports (10Gbps)

- 1 USB-C 3.2 Gen2 port (10Gbps) with PD100W charging support

- 1 HDMI port for 4k/30Hz resolution

- 1 3.5mm audio port

- 1 Gigabit Ethernet port (Rj45)

- 1 SD/TF card reader

Ethernet

1

1

Gigabit Ethernet-1000M

Fast data transfer & network: plug-and-play and instant access to the lightning-fast 1000M Ethernet port. Download movies faster, transfer files faster, and reduce latency in games.

Audio In & out

The 3.5mm audio jack features both stereo and microphone functionality.

SD/TF 2.0 Card Reader

The SD/TF Card reader supports SD 2.0, for quickly access to your photos or videos on SD/TF cards. SD/TF cards can not be used at the same time.


Installation

A NVMe slot is equipped at the bottom of the dock. You can insert a M.2 NVMe ssd extend an additional storage up to 4TB.


  • It supports M-Key and B&M-Key 2230/2242/2260/2280 NVMe SSDs. Do not support SATA drives.
  • It supports 10Gbps transfer speed. Actual speed test: Read/Write can reach up to 921MB/s / 879MB/s.
  • If the hard drive is not recognized, please download the latest firmware.


1

Further information you may want to know:


  • Full operation will raise the surface temperature by about 50℃, plus the superior heat dissipation performance of aluminum alloy to ensure safe and stable operation.

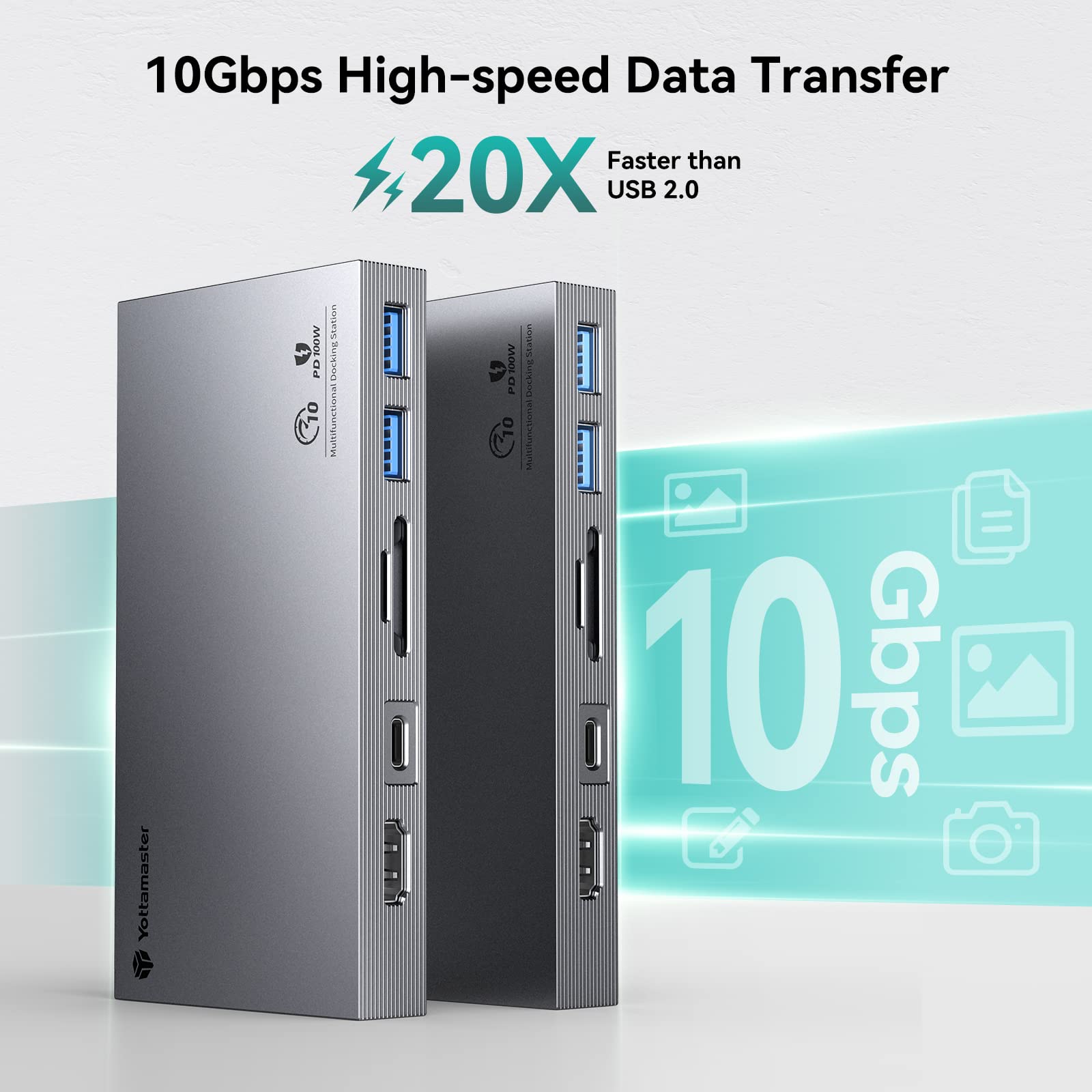

  • 10Gbps theoretical transmission speed can only be achieved when both the output device and the data cable support 10Gps transmission.

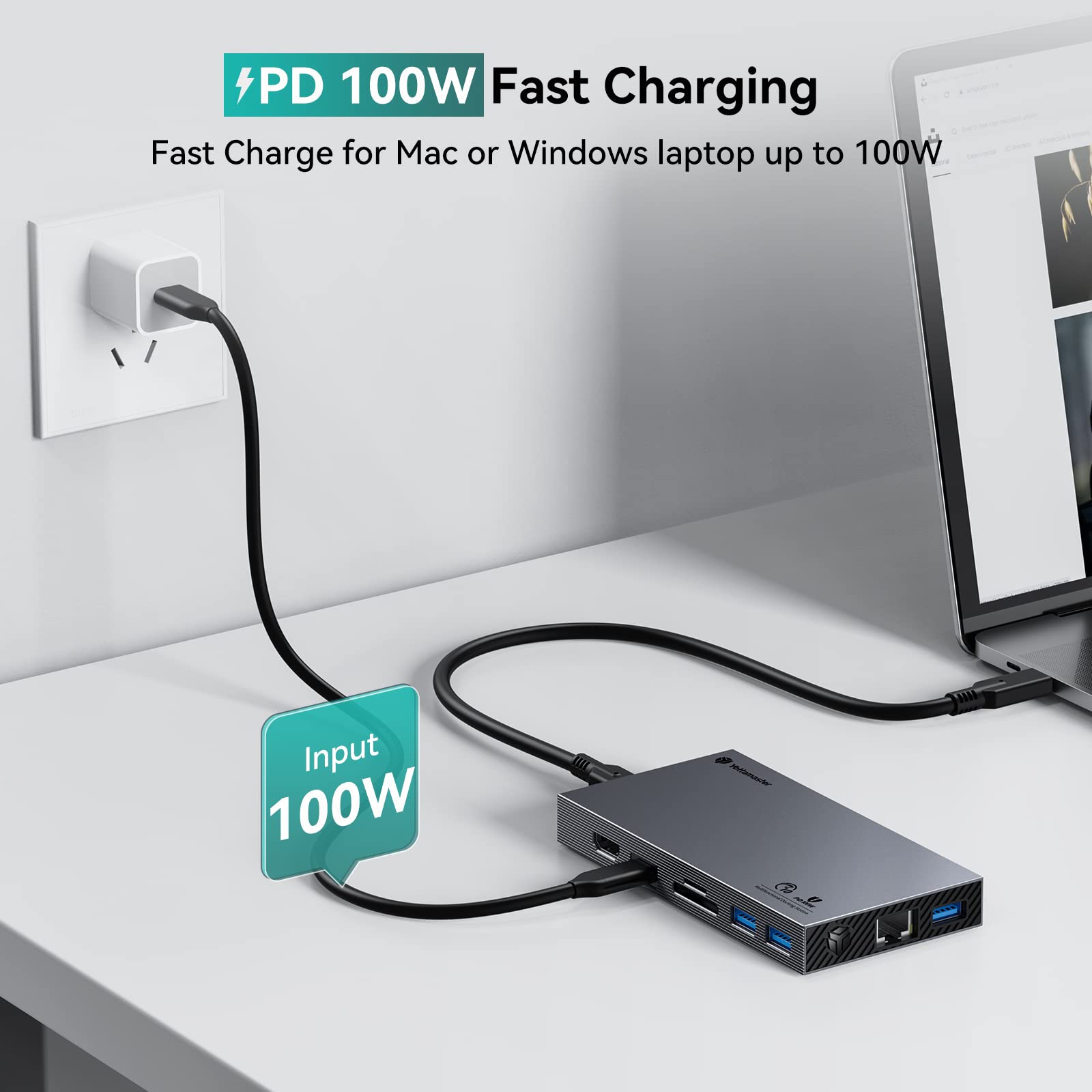

  • 100W PD fast charging effect can only be achieved when the charging device supports 100W PD fast charging.
  • 1000M broadband speed can only be achieved when the actual broadband speed reaches 1000M; backward compatible.

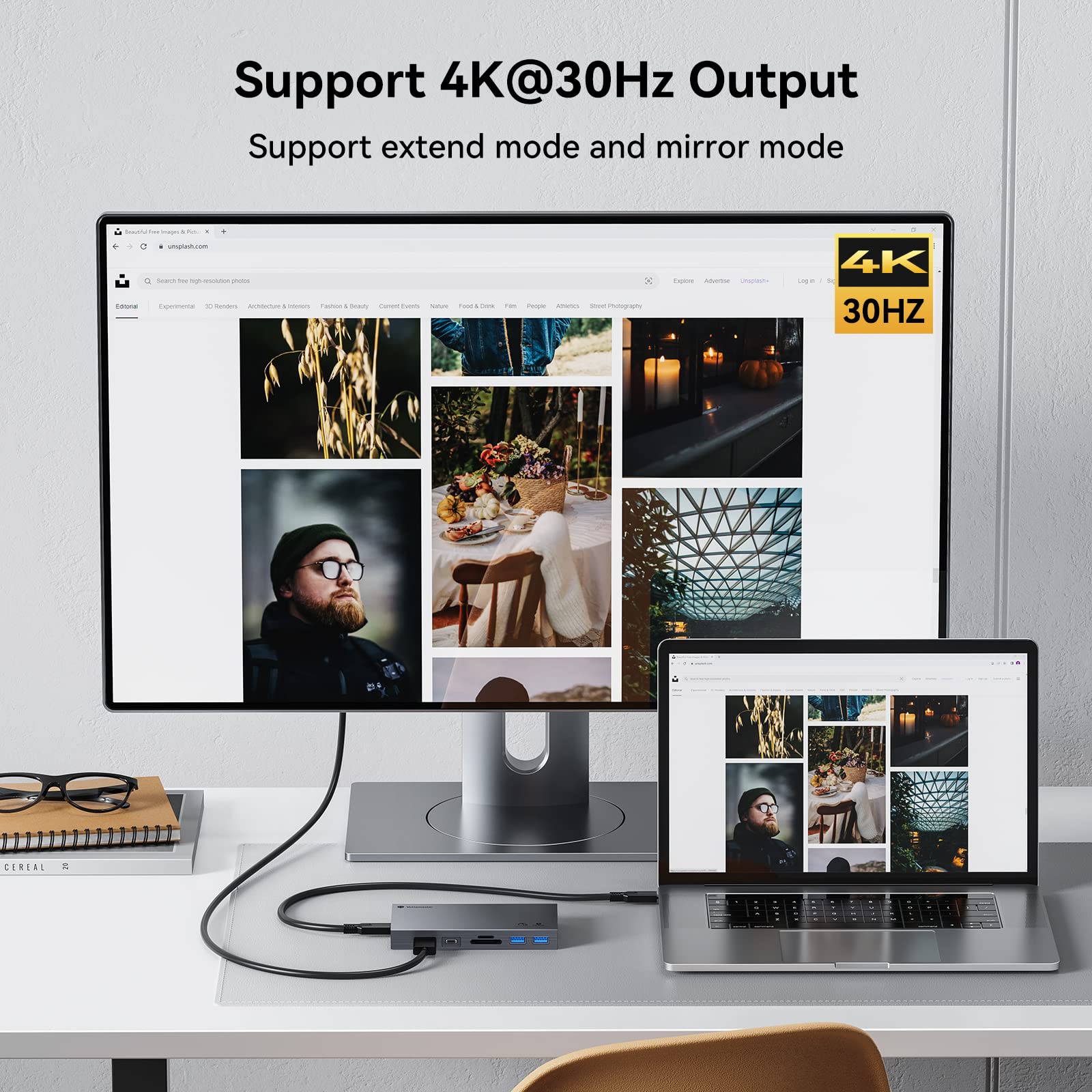

  • 4K resolution can only be achieved when the display device supports 4K resolution or the picture resolution is 4K; only Windows OS supports MST.
  • Backward-compatible resolutions: 2K @ 30Hz/60Hz, 1080p@ 30Hz/60Hz
  • 3.5mm audio port supports audio input and output, requires a computer with a sound card.
  • OTG function requires cell phone support.

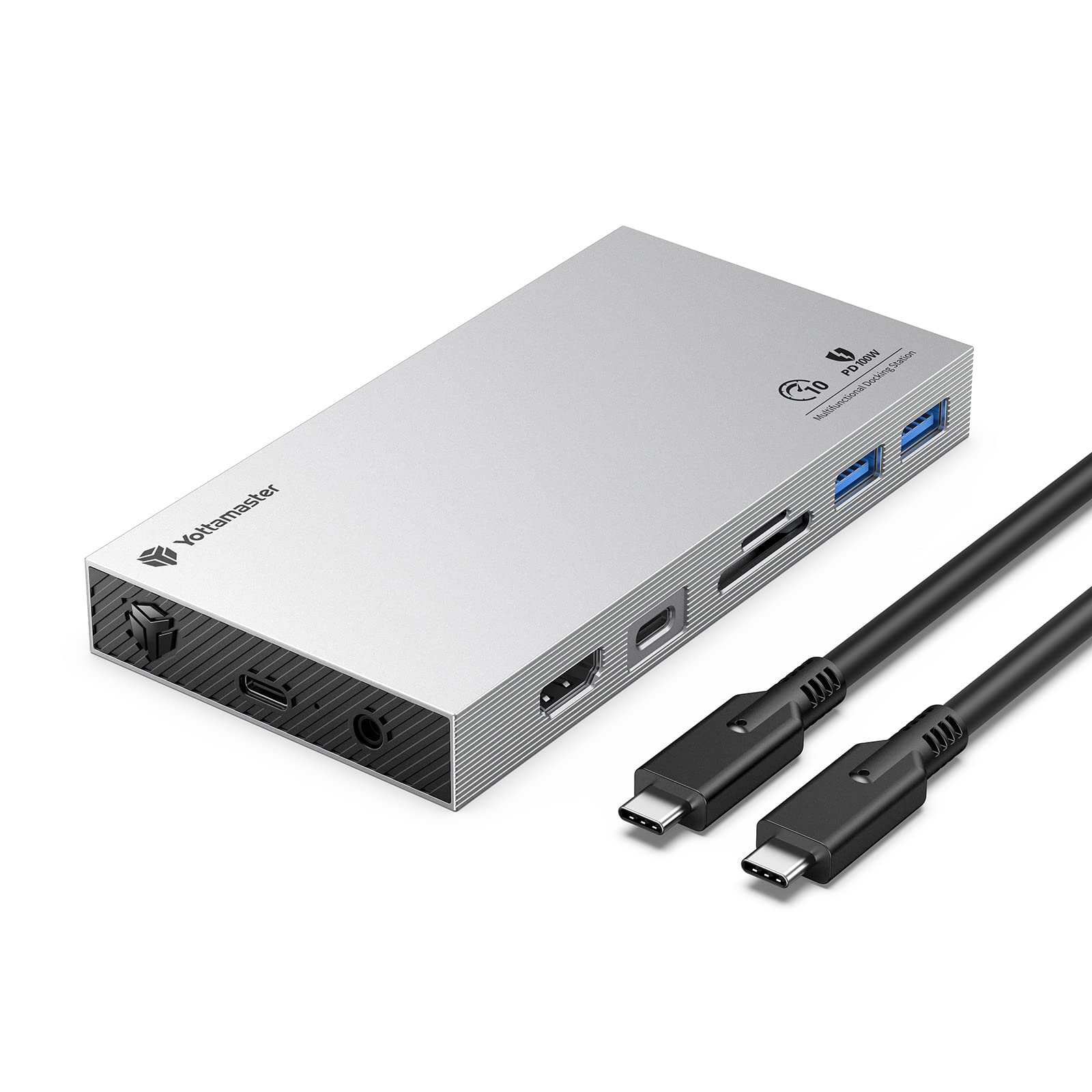

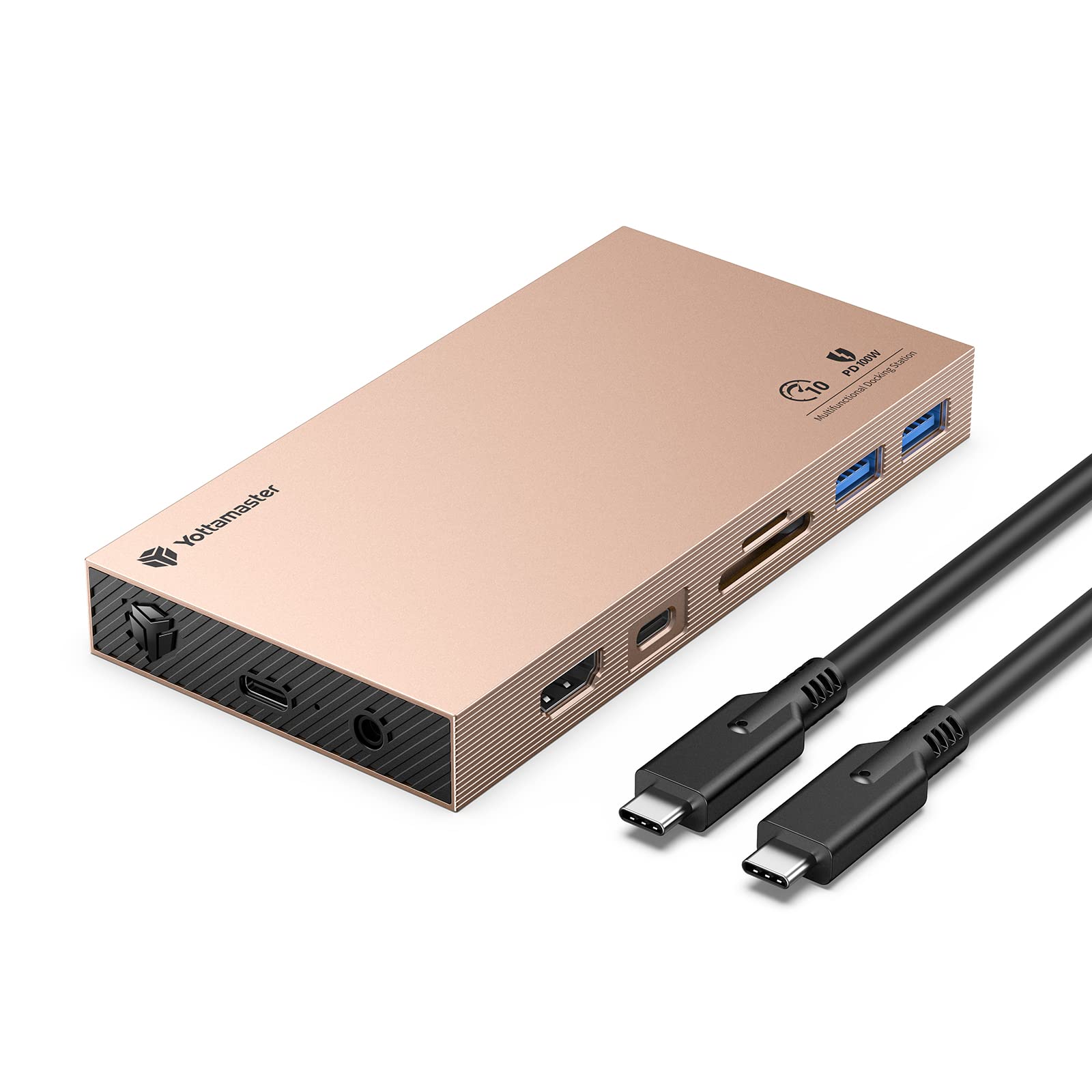

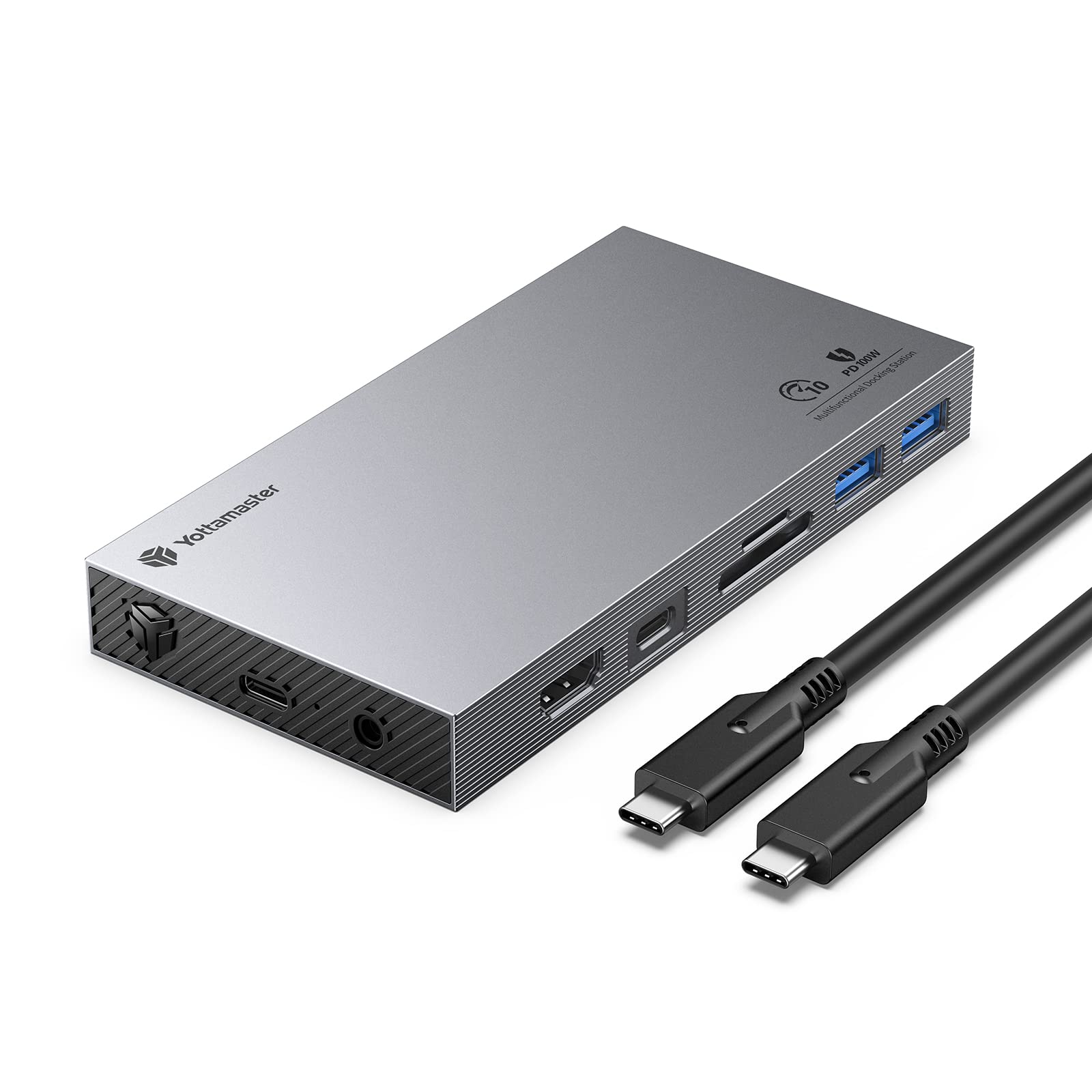

USB C Docking Station in Gray / Rose Gold/ Silver

1

Please note that the USB-C port not only supports power delivery but also offers 10Gbps data transfer speeds.

For stable connections with high-power devices, we recommend connecting the USB-C port to a power supply when accessing M.2 SSDs.

DS03C

USB C Docking Station with M.2 NVMe Enclosure

Are you tired of dealing with a cluttered desktop, constantly switching devices, and struggling with limited interfaces? Look no further than the Yottamaster 10-in-1 Docking Station to solve all your connectivity woes.

This versatile hub is designed to streamline your work setup. With a single device, you can expand your device's capabilities and enjoy seamless data transfers. Say goodbye to storage constraints and sluggish data exchange – this hub has got it all covered.

Here are the key specifications:

- 1 NVMe slot (supporting up to 4TB of storage)

- 3 USB-A 3.2 Gen2 ports (10Gbps)

- 1 USB-C 3.2 Gen2 port (10Gbps) with PD100W charging support

- 1 HDMI port for 4k/30Hz resolution

- 1 3.5mm audio port

- 1 Gigabit Ethernet port (Rj45)

- 1 SD/TF card reader

Ethernet

1

1

Gigabit Ethernet-1000M

Fast data transfer & network: plug-and-play and instant access to the lightning-fast 1000M Ethernet port. Download movies faster, transfer files faster, and reduce latency in games.

Audio In & out

The 3.5mm audio jack features both stereo and microphone functionality.

SD/TF 2.0 Card Reader

The SD/TF Card reader supports SD 2.0, for quickly access to your photos or videos on SD/TF cards. SD/TF cards can not be used at the same time.


Installation

A NVMe slot is equipped at the bottom of the dock. You can insert a M.2 NVMe ssd extend an additional storage up to 4TB.


  • It supports M-Key and B&M-Key 2230/2242/2260/2280 NVMe SSDs. Do not support SATA drives.
  • It supports 10Gbps transfer speed. Actual speed test: Read/Write can reach up to 921MB/s / 879MB/s.
  • If the hard drive is not recognized, please download the latest firmware.


1

Further information you may want to know:


  • Full operation will raise the surface temperature by about 50℃, plus the superior heat dissipation performance of aluminum alloy to ensure safe and stable operation.
  • 10Gbps theoretical transmission speed can only be achieved when both the output device and the data cable support 10Gps transmission.
  • 100W PD fast charging effect can only be achieved when the charging device supports 100W PD fast charging.
  • 1000M broadband speed can only be achieved when the actual broadband speed reaches 1000M; backward compatible.
  • 4K resolution can only be achieved when the display device supports 4K resolution or the picture resolution is 4K; only Windows OS supports MST.
  • Backward-compatible resolutions: 2K @ 30Hz/60Hz, 1080p@ 30Hz/60Hz
  • 3.5mm audio port supports audio input and output, requires a computer with a sound card.
  • OTG function requires cell phone support.


USB C Docking Station in Gray / Rose Gold/ Silver

1

Please note that the USB-C port not only supports power delivery but also offers 10Gbps data transfer speeds.

For stable connections with high-power devices, we recommend connecting the USB-C port to a power supply when accessing M.2 SSDs.
